Description

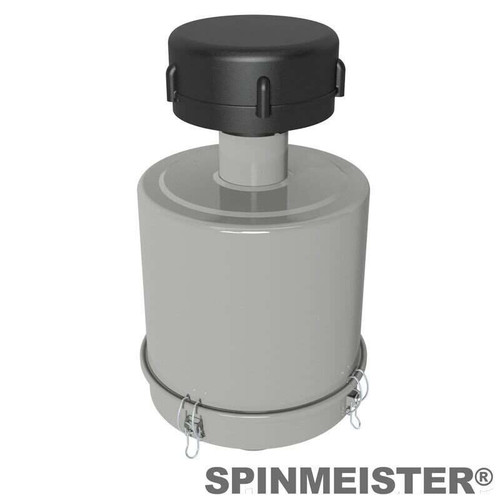

SM3-235P-400 SpinMeister Assembly for Extreme Duty Filtration - Solberg Manufacturing
Intake air is drawn through the angled louver plates which direct the air to turn the rotor. The centrifugal force separates the contaminants from the airstream, throwing them to the outer perimeter of the cover, expelling them through the discharge port. Cleaner air is drawn to the lower chamber and filtered by a 99% efficient pleated element.
Specifications (SM3-235P-400):
- Connection: 4" MNPT
- Flow rating: 250 SCFM
- Media: polyester 5 micron
- Efficiency: 99+%
- Dimensions (in): A 21.42, B 4, C 11
- Weight: 32 lb
- Suggested service height: 10 in
- Replacement element: 235P
- Alternate media version: SM3-234P-400
Features:
- SpinMeister made of molded fiber filled composite material
- All small compact filters with seamless housings
- Corrosive resistant gray powder coat carbon steel
Benefits:
- Extreme duty filtration for high dust environments
- Significantly increases life of filter element
- Cost effective
Technical Specifications:
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O over initial ΔP
- Polyester: 99%+ removal efficiency to 5 micron
- Paper: 99%+ removal efficiency to 2 micron
- SpinMeister Precleaner: 85+% efficiency to 15 micron
