Product Details

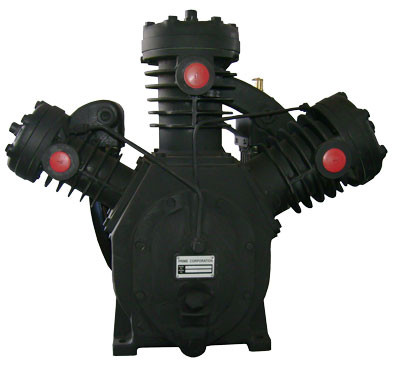

Ingersoll Rand Type 30 Model 2000 Two-Stage Bare Pump Air Compressor (CCN 20102497)
The Ingersoll Rand Type 30 Model 2000 is a powerhouse two-stage bare pump engineered for heavy-industrial air systems that demand high volume and consistent performance. Built entirely from cast iron, the 2000 pump combines exceptional strength with efficient cooling and long service life. Its three-cylinder, two-stage “W-style” design provides smoother compression, reduced vibration, and improved balance across the crankshaft. Ideal for facilities running 20 to 25 horsepower systems, this pump is designed for 100 % duty-cycle operation where downtime is not an option. The Model 2000 stands as one of the most capable and enduring compressors in the Ingersoll Rand Type 30 family.
Technical Details
- Operating Pressure: Up to 175 PSI
- Air Delivery (CFM): Approximately 40 – 50 CFM @ 175 PSI (depending on drive speed)
- Speed Range: 550 – 1000 RPM
- Horsepower Range: 20 – 25 HP recommended
- Weight: Approximately 650 lb
- Dimensions: 37″ L × 30″ W × 27″ H
- Construction: 100 % cast-iron frame, heads, and cylinders for superior heat dissipation and wear resistance
- Design: Three-cylinder, two-stage “W” configuration for balanced operation and reduced bearing load
- Cooling: Deep-finned cylinders with integral intercooler tubes for maximum temperature control
- Lubrication: Splash-lubricated system with large-capacity oil sump for extended runtime
Key Highlights & Benefits
- High-Capacity Performance: Delivers the airflow needed for large industrial plants, production lines, and multi-tool workstations.
- Built for Longevity: Cast-iron construction and oversized bearings ensure long life under continuous load.
- Optimized Cooling: Fin-cooled design and intercooling between stages minimize heat and improve compressor efficiency.
- Smooth Operation: The W-configured crankshaft arrangement reduces vibration and enhances reliability at higher RPMs.
- Service-Friendly Design: Straightforward access to oil fill, valves, and gaskets simplifies maintenance and inspection.
Frequently Asked Questions
Ingersoll Rand Type 30 Model 2000 Two-Stage Bare Pump (CCN 20102497)
▶️ Question: What kind of performance should I expect from the Model 2000?
Answer: The 2000 is a high-capacity two-stage pump typically used with 20–25 HP drives. When properly pulleied within its recommended RPM range, it can deliver roughly 40–50 CFM at up to 175 PSI for continuous industrial use.
▶️ Question: How should I size the motor and pulleys for the 2000?
Answer: Most installations pair the 2000 with a 20–25 HP motor. Select pulley diameters to keep the pump within its operating window (about 550–1000 RPM). Staying in that range maintains cooling efficiency, output, and bearing life.
▶️ Question: What makes the 2000 different from smaller Type 30 pumps?
Answer: The 2000 uses a heavy-duty three-cylinder, two-stage layout that favors higher airflow and smoother balance under load. Compared to models like the 2545 or 7100, it’s designed for larger systems and multi-tool stations that need sustained CFM at 175 PSI.
▶️ Question: Is the Model 2000 suitable for continuous-duty operation?
Answer: Yes. With its all-cast-iron construction, generous oil sump, and robust crankshaft, the 2000 is built for 100% duty cycles in production environments—provided maintenance intervals are followed and cooling/ventilation are adequate.
▶️ Question: What maintenance practices extend the 2000’s service life?
Answer: Change oil on schedule, keep intake filters clean, verify belt tension and alignment, and inspect valves and gaskets during planned downtime. Running within rated RPM and pressure limits is key to long bearing and ring life.
Specifications
-
Tank
No
-
Compressor Type
Bare Pump
-
Integrated Dryer
No
-
Max PSI
175 PSI
-
Product Model
2000
-
Variable Speed
No
