Description

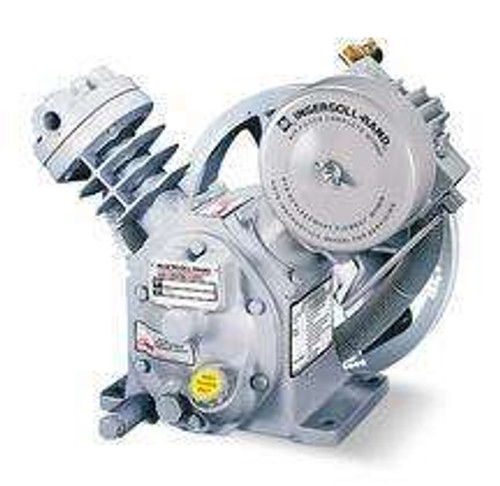

2340 Two Stage Bare Pump - 18002394
The 2340 Compressed Air System Component is a high-performance solution designed for industrial compressed air systems. this Ingersoll Rand component ensures optimal performance and reliability.
Ingersoll Rand Type 30 Model 2340 Two-Stage Bare Pump Air Compressor (CCN 18002394) The Ingersoll Rand Type 30 Model 2340 is a compact yet powerful two-stage bare compressor pump designed for commercial workshops and light-industrial operations. With its 100 % cast-iron construction and precision-balanced components, the 2340 delivers reliable air power and long service intervals under continuous use. The twin-cylinder, two-stage design efficiently compresses air to 175 PSI while maintaining cooler operating temperatures and reduced wear. Known for its durability and efficiency, the Model 2340 is ideal for auto service centers, maintenance departments, and small manufacturing environments that demand steady, dependable compressed air output. Technical Details Operating Pressure: Up to 175 PSI Air Delivery (CFM): Approximately 14 CFM @ 175 PSI (5 HP typical configuration) Speed Range: 700 – 1575 RPM Horsepower Range: 3 – 5 HP recommended Weight: Approximately 150 lb Dimensions: 20″ L × 19″ W × 17″ H Construction: 100 % cast-iron pump body, crankcase, and cylinders for durability and thermal stability Design: Two-cylinder, two-stage “V-twin” configuration for smooth operation and balanced performance Cooling: Deep-finned cylinders and integral intercooler to reduce air discharge temperature Lubrication: Splash-lubricated system with oil sight glass for easy monitoring Key Highlights & Benefits Reliable Performance: Proven two-stage design provides consistent air output and extended duty life. Compact Footprint: Fits easily into smaller shop layouts while maintaining full industrial performance. Energy-Efficient Compression: Dual-stage operation increases efficiency by minimizing heat build-up. Easy Maintenance: Accessible service points simplify oil changes and valve inspection. Long-Life Durability: Built for continuous daily operation with heavy-duty components and low wear characteristics. Frequently Asked Questions Ingersoll Rand Type 30 Model 2340 Two-Stage Bare Pump (CCN 18002394) ▶️ Question: What type of performance can I expect from the Model 2340? Answer: The 2340 is a compact two-stage pump designed for light-industrial and commercial shops. When operated within its rated speed range, it typically delivers around 14 CFM at 175 PSI using a 3–5 HP motor. ▶️ Question: What makes the 2340 different from larger Type 30 pumps? Answer: The 2340 is smaller and lighter than the 2475 or 2545, making it ideal for installations where space and power availability are limited. Despite its size, it still uses the same durable cast-iron construction and two-stage compression for long life and efficiency. ▶️ Question: Is the 2340 suitable for continuous-duty use? Answer: Yes, when properly maintained. The cast-iron cylinders and splash-lubricated crankcase are built to handle daily operation, though allowing cool-down cycles in heavy-use environments helps extend service life. ▶️ Question: What kind of maintenance does the 2340 require? Answer: Regular oil changes, clean intake filters, and periodic belt inspections are the main requirements. Because of its simple design, most servicing can be done quickly without specialized tools. ▶️ Question: Where is the 2340 best suited for use? Answer: The 2340 performs well in small manufacturing shops, auto service centers, and maintenance facilities that need dependable, mid-range compressed air performance without the size or power draw of a larger system.
Key Features
- Ingersoll Rand Quality: Engineered for seamless integration.
- Durable Construction: Designed for long service life in harsh environments.
Specifications
| Model | 2340 |
|---|---|
| Manufacturer | Ingersoll Rand |
| Max Pressure | 175.0 PSI |
| Horsepower | 5_HP HP |
| Weight | 150.0 lbs |
Benefits
- Reliable Performance: Minimizes unplanned downtime.
- Cost-Effective: High-quality alternative to local dealer pricing.
Installation & Application Notes
- Verify system compatibility before installation.
- Follow all site safety and manufacturer guidelines.
Frequently Asked Questions
2340
Answer: It is a Compressed Air System Component used in industrial air compressor systems to ensure reliable operation.
