Product Details

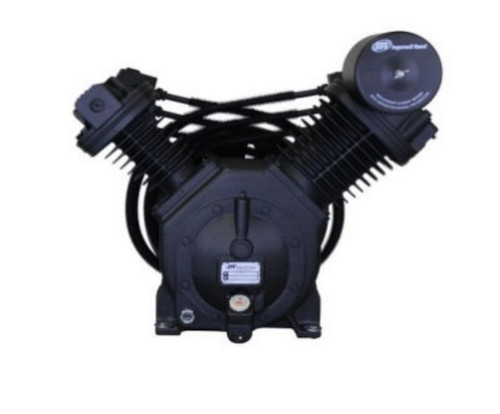

Ingersoll Rand Type 30 Model 7100V Two-Stage Bare Pump Air Compressor (CCN 18002451)
The Ingersoll Rand Type 30 Model 7100V two-stage bare compressor pump combines high-capacity air delivery with a vertical space-saving configuration ideal for stationary industrial setups. Crafted entirely from cast iron, the 7100V provides the same trusted performance and long service life as the horizontal 7100, with the added advantage of a smaller footprint. Its balanced two-stage design and fin-cooled cylinders ensure efficient operation, stable compression, and reduced operating temperatures. Built for continuous use, this pump is widely used in manufacturing, automotive, and fabrication environments where dependable, high-pressure air is essential.
Technical Details
- Operating Pressure: Up to 175 PSI
- Air Delivery (CFM): Up to 50 CFM @ 175 PSI (depending on RPM and drive power)
- Speed Range: 750 – 1100 RPM
- Horsepower Range: 10 – 15 HP recommended
- Pump Orientation: Vertical mount for reduced footprint
- Weight: Approximately 450 lb
- Dimensions: 30″ L × 27″ W × 45″ H
- Construction: 100 % cast-iron pump frame, heads, and cylinders for superior durability
- Cooling: Dual-finned intercooler and aftercooler for optimal heat reduction
- Lubrication: Splash-lubricated crankcase with large oil reservoir and easy-access sight glass
Key Highlights & Benefits
- Vertical Space Efficiency: Provides high-capacity air performance while minimizing installation footprint.
- Continuous-Duty Design: Built for 100 % duty operation in heavy industrial and manufacturing environments.
- High-Output Efficiency: Two-stage compression delivers cooler air and higher pressure with less energy loss.
- Industrial Build Quality: Cast-iron components withstand demanding cycles and extend pump life.
- Low Maintenance Access: Simplified oil fill, drain, and filter access points for easy servicing.
Frequently Asked Questions
Ingersoll Rand Type 30 Model 7100V Two-Stage Bare Pump Air Compressor (CCN 18002451)
▶️ Question: What makes the 7100V different from the standard horizontal 7100?
Answer: The 7100V is the vertical-mount version of the 7100 pump. It delivers the same air output and reliability but is designed to save floor space. The vertical layout makes it easier to integrate into stationary systems with height clearance but limited width.
▶️ Question: What performance should I expect from the 7100V?
Answer: The 7100V provides up to 50 CFM at 175 PSI when driven by a 10–15 HP motor and operated between 750 and 1100 RPM. It’s built for heavy-duty use and consistent performance under full load.
▶️ Question: Can the 7100V operate continuously in industrial settings?
Answer: Yes. Like the horizontal model, the 7100V is rated for 100% duty-cycle use. Its cast-iron frame, finned cylinders, and splash-lubricated crankcase make it dependable for around-the-clock operation.
▶️ Question: What maintenance does the 7100V require?
Answer: Change oil every 500–1000 hours depending on conditions, keep intake filters clean, and inspect belts and pulleys for wear. Ensure that there’s proper ventilation around the vertical frame to support cooling.
▶️ Question: Where is the 7100V typically used?
Answer: The 7100V is ideal for high-demand air systems in manufacturing plants, automotive service centers, fabrication shops, and facilities where vertical compressors fit better than horizontal units.
Specifications
-
Compressor Type
Bare Pump
-
Hertz
60 HZ
-
Horsepower
15 HP
-
Integrated Dryer
No
-
Max PSI
175 PSI
-
Product Model
7100V
-
Variable Speed
No
