Description

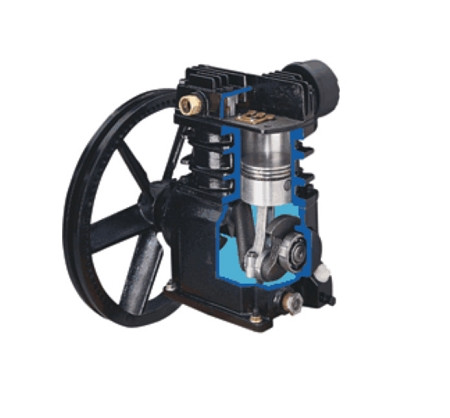

Ingersoll Rand Type 30 Model SS5 Single-Stage Bare Pump Air Compressor (CCN 18002386)
The Ingersoll Rand Type 30 Model SS5 is a rugged single-stage bare compressor pump engineered for shops that need dependable air delivery with minimal upkeep. Built from 100% cast iron and balanced for smooth operation, the SS5 offers strong CFM output in a compact footprint—ideal for automotive bays, fabrication benches, and maintenance crews that run air tools daily. Its straightforward design, generous cooling fins, and easy-access service points make it a long-life, low-hassle choice for everyday compressed-air workloads.
Technical Details
- Operating Pressure: Up to 135 PSI
- Air Delivery (CFM): ~18 CFM @ 90 PSI (5 HP typical configuration)
- Speed Range: 800 – 1300 RPM
- Horsepower Range: 3 – 5 HP recommended
- Weight: ~110 lb (bare pump)
- Dimensions: 18″ L × 16″ W × 15″ H (approx.)
- Construction: 100% cast-iron crankcase and cylinders for durability and heat stability
- Design: Two-cylinder, single-stage configuration for strong low-to-mid-pressure output
- Cooling: Deep-finned heads and integral aftercooling paths to reduce discharge temperature
- Lubrication: Splash-lubricated system with sight glass and easy-fill access
Key Highlights & Benefits
- High CFM for the Class: Delivers robust airflow for common shop tools and light production tasks.
- Built to Last: All-cast-iron design resists wear under frequent start-stop cycles.
- Smooth, Quiet Operation: Balanced rotating assembly helps reduce vibration and noise.
- Fast, Simple Service: Accessible oil fill/drain and filter locations minimize downtime.
- Compact Footprint: Easy to integrate into existing stations or custom stationary builds.
Frequently Asked Questions
Ingersoll Rand Type 30 Model SS5 Single-Stage Bare Pump Air Compressor (CCN 18002386)
Answer: The SS5 delivers approximately 18 CFM at 90 PSI when driven by a 5 HP motor. It provides solid airflow and reliable operation for light to mid-duty air tool applications in workshops and garages.
Answer: The SS5 offers higher CFM output and a slightly larger frame than the SS3. It’s better suited for users who run multiple air tools or need higher air capacity for short bursts of demand.
Answer: The SS5 can operate for extended periods but is best used for moderate-duty cycles. For nonstop industrial operation, Ingersoll Rand’s two-stage pumps such as the 2475 or 2545 are better options.
Answer: Change the compressor oil at recommended intervals, check belt alignment, and keep the air filter clean. Proper maintenance ensures quiet operation and maximizes the pump’s service life.
Answer: The SS5 is commonly used in small repair shops, light manufacturing, and automotive service bays. It’s ideal for powering pneumatic tools, tire changers, paint sprayers, and general maintenance equipment.
