Product Details

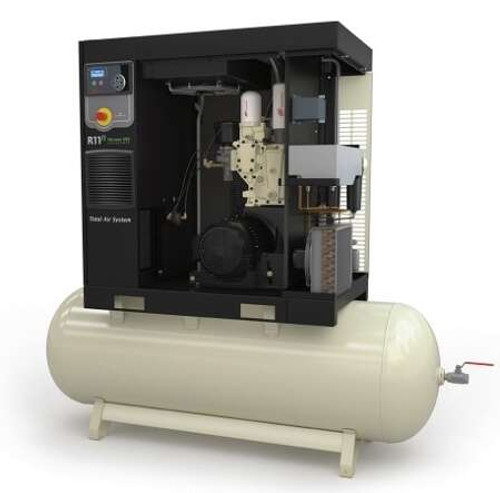

The reliable Ingersoll Rand R-Series 4-11 kW compressor extends the R-Series family into the commercial machine range as well as offers innovative features and a compact design that fits virtually any application environment.
Improvements from UP6 models
- An IE3 premium efficiency TEFC (Totally Enclosed Fan Cooled) motor is standard on all models
- Higher Cubic Feet/Minute (CFM) output
- Pressure switch has been replaced by an electronic controller making for easy programming
- Smaller carbon footprint is better for the environment
- Premium PTFE hoses standard on all oil lines reduce leakage
- Vastly improved seals and fewer connection junctions:
- Reduces potential for leakage
- Total leak path and connections reduced by 15-20% over UP6 models
TAS (Total Air System) models feature:
- Single point electrical connection: UP6 TAS models required a separate 110V plug for dryer
- Integrated controls with water separators, drain ports, filter and receiver tanks
- High-efficiency and general purpose filters (with integrated dryer)
- 3-in-1 heat exchange provides increased reliability and efficiency
- Class-leading dryer design with proven reliability minimizes installation costs with a single power point connection
Specifications
-
Tank
Yes
-
Compressor Type
Rotary Screw
-
Hertz
60 HZ
-
Horsepower
15 HP
-
Integrated Dryer
Yes
-
Max PSI
115 PSI
-
Phase
3 Phase
-
Power Source
Electric
-
Product Model
R11i
-
Tank Orientation
Horizontal
-
Tank Size
120 Gallons
-
Variable Speed
No
-
Voltage
575
-
CFM
53.9
