Description
Product Specifications

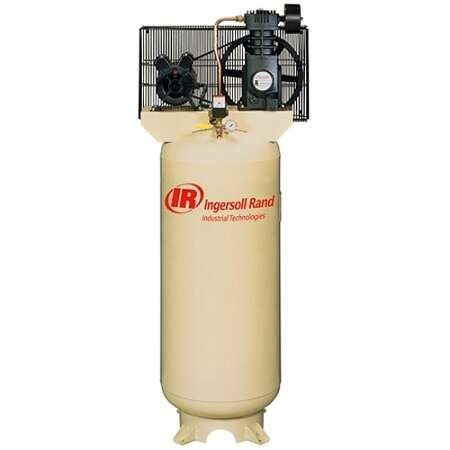

Part Number: SS5L5
Technical Details
- Durable cast-iron cylinders, heads, and frame are designed for continuous operation and extended pump life
- Oversized belt wheel provides reliable design and cooler operation
- Ingersoll Rand synthetic lubricant provides 2,000-hour oil change intervals(four times longer than mineral-based lubricants
- High-efficiency stainless steel finger valves are simple, efficient, and easy to maintain
- Manual thermal overload protection of the motor
Product Description
Designed for the professional, single-stage air compressors are ideal for most anyone, from the do-it-yourselfer to the professional air compressor user. Maximum air power and more delivered air (CFM) providing the power to do the job right and in less time. Durable cast iron construction with precision engineered quality components. Warranty on the pump extends to 2 years with the use of appropriate start-up kit (20100251). U.S.A.
- CFM at 90
- PSI: 18.1,
- Max. PSI: 135,
- Volts: 230,
- Amps: 22.5 at full load; 120 at startup; recommend 60 Amp dual pull breaker,
- Air Tank Size (gal.): 60,
- Tank Description: Vertical, Pump: Single-stage oil-lubricated belt-driven, Air Outlet Size (in.): 1/2,
- Portable or Stationary: Stationary,
- Dimensions L x W x H (in.): 20 x 30 x 71
Product Details
- Item Weight: 310 pounds
- Shipping Weight: 376 pounds
- Shipping: Currently, item can be shipped only within the U.S. and to APO/FPO addresses. For APO/FPO shipments, please check with the manufacturer regarding warranty and support issues.
