Product Details

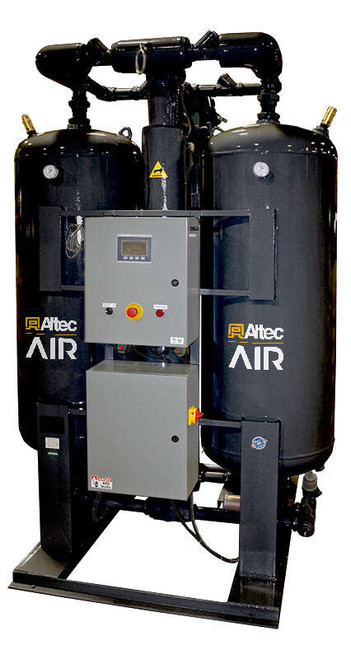

Altec AIR’s HBP Series Heat Regenerative Desiccant Air Dryers also use heated air to regenerate the off-line tower. Additionally, a high-efficiency packaged blower assembly directs heated atmospheric air counter current through the desiccant bed, removing the water vapor collected from the previous drying cycle. Dew point spikes or heat bumps are mitigated by enabling the auxiliary cooling / stripping feature that uses a small percentage of dry process air (1.7%)
- Industrial Duty Blower
- ASME / CRN Approved Pressure Vessels
- Factory installed Filters w/ Differential Pressure Gauges and Pre-Filter Timer Drain
- Feature Rich ETL Listed Pro-Logic Controller w/ NEMA 4X Enclosure
- Regulated Purge Flow for Optimum Setting, Regardless of Operating Pressure
- ISO 8573.1 Class 2 -40°F/C Standard Outlet Dewpoint
Standard Features:
- Tower Pressure Gauges & Dew Point Indicators
- Welded Frame Base - Easy Move With Forklift
- OSHA Approved Mufflers
- Desiccant Fill & Drain Ports
- ASME Safety Relief Valves
Programmable timer, zero-loss drain and digital scroll compressor options available. Request a Quote
Specifications
-
Air Dryer Type
Desiccant
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
150 PSI
-
Phase
3 Phase
-
Product Model
HBP
-
Voltage
460
-
Flow Rate (scfm)
400
