Product Details

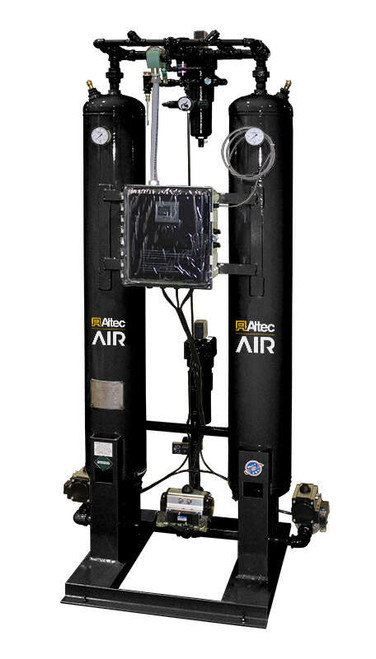

Altec AIR’s HHP Series High Pressure Heatless Desiccant Air Dryers are specially designed for higher pressure applications. They are available in three specific designs rated for maximum working pressures of 250, 500, and 1000 PSIG.- ISO 8573.1 Class 2 -40°F/C Standard Outlet Dewpoint
- Factory installed Filters w/ Differential Pressure Gauges and Pre-Filter Timer Drain
- Separate Re-Pressurization Circuit (HHP-0100 & Larger)
- Feature Rich ETL Listed Pro-Logic Controller w/ NEMA 4 Enclosure
- Regulated Control Air & Adjustable Purge
Specifications
-
Flow Rate (scfm)
100
-
Air Dryer Type
Desiccant
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
250 PSI
-
Phase
1 Phase
-
Product Model
HHP
-
Voltage
120
