Product Details

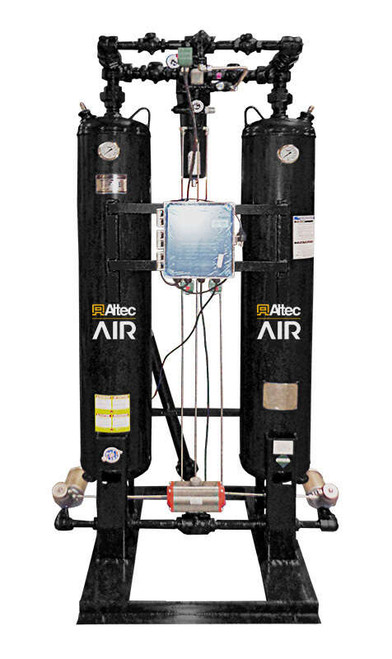

With their standard rugged design features, Altec AIR’s HOF Series Heatless Oil Field Air Dryers provide clean, dry compressed air, resulting in improved air system operation with unparalleled reliability and safety in an often unforgiving environment.
- ISO 8573.1 Class 2 -40°F/C Standard Outlet Dewpoint- Down to -58°F/-50°C Possible in Low Dew Point Mode
- Factory installed Filters
- Separate Re-Pressurization Circuit (HOF-0100 - HOF-0800)
- ASME /CRN Pressure Vessels (HOF-0100 - HOF-0800)
- Feature Rich ETL Listed Pro-Logic Controller w/ NEMA 4 Enclosure
- Regulated Control Air & Adjustable Purge
Standard Features:
- Power Requirements - 120 VAC, 1 Phase, 60 Hz
- Maximum Pressure - 150-200 PSIG (Model Specific)
- Maximum Operating Temperature - 120°F / 49°C
- Selectable Cycles
- ASME Safety Relief Valves
- OSHA Approved Mufflers
- Stainless Steel Control Tubing & 316 Stainless Steel Compression Fittings
Programmable timer, zero-loss drain and digital scroll compressor options available. Request a Quote
Specifications
-
Air Dryer Type
Desiccant
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
150 PSI
-
Phase
1 Phase
-
Product Model
HOF
-
Voltage
120
-
Flow Rate (scfm)
300
