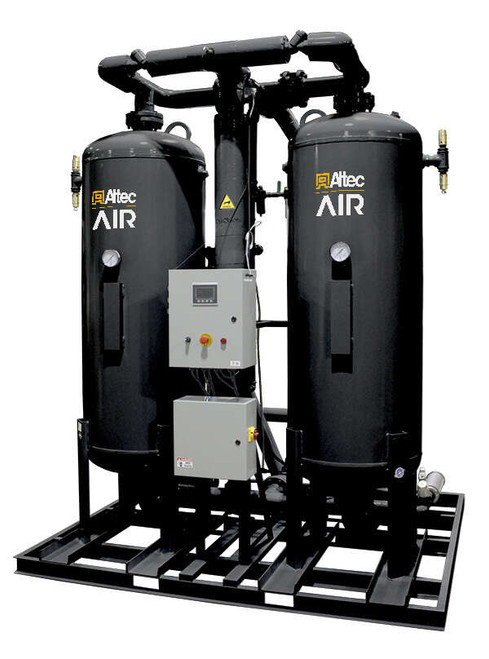

HRE-3000-4 460 VAC, 3 Phase, 60 Hz Dual Tower Heat Regenerative Desiccant Air Dryer

HRE-3000-4 460 VAC, 3 Phase, 60 Hz Dual Tower Heat Regenerative Desiccant Air Dryer

blank star blank star blank star blank star blank star 0 reviews

$124,242.00

  • Part Number: HRE-3000-4
  • Brand: Altec

$124,242.00

Adding to cart… The item has been added

Estimated Lead Time:

7-10 Days

Estimated Lead Time:

7-10 Days

Share:

Product Details

Altec AIR’s HRE Series Heat Regenerative Desiccant Air Dryers apply a regulated amount of dried process air, which has been heated by way of a low watt density heater, down through the desiccant bed (counter current). This heated purge air is then exhausted to atmosphere, removing the water vapor that had adhered to the desiccant during the previous cycle.

  • ASME / CRN Approved Pressure Vessels
  • Factory installed Filters w/ Differential Pressure Gauges and Pre-Filter Timer Drain
  • Feature Rich ETL Listed Pro-Logic Controller w/ NEMA 4X Enclosure
  • Regulated Purge Flow for Optimum Setting, Regardless of Operating Pressure
  • ISO 8573.1 Class 2 -40°F/C Standard Outlet Dewpoint

Standard Features:

  • Maximum Pressure - 150 PSIG Standard
  • Maximum Operating Temperature - 120°F / 49°C
  • Tower Pressure Gauges & Dew Point Indicators
  • Welded Frame Base - Easy Move With Forklift
  • OSHA Approved Mufflers
  • Desiccant Fill & Drain Ports
  • ASME Safety Relief Valves


Programmable timer, zero-loss drain and digital scroll compressor options available. Request a Quote

Specifications

  • Air Dryer Type

    Desiccant

  • Hertz

    60 HZ

  • Max Inlet Temp. (F)

    120

  • Max PSI

    150 PSI

  • Phase

    3 Phase

  • Product Model

    HRE

  • Voltage

    460

  • Flow Rate (scfm)

    3000
