Product Details

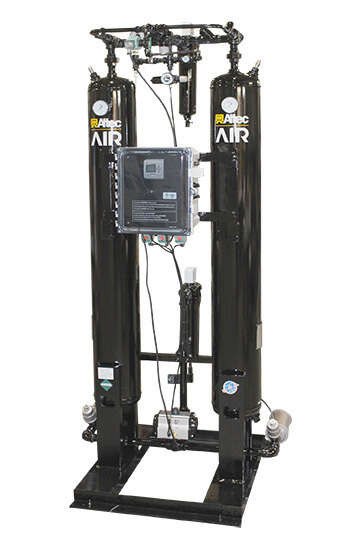

Altec AIR’s HRL Series Heatless Desiccant Air Dryers are our largest capacity regenerative air dryers to meet the needs of the industrial compressed air market.
- ASME / CRN Approved Pressure Vessels
- Factory installed Filters w/ Differential Pressure Gauges and Pre-Filter Timer Drain
- -Z Switching Valves for Extreme Valve Life
- Feature Rich ETL Listed Pro-Logic Controller w/ NEMA 4 Enclosure
- Regulated Purge Flow for Optimum Setting, Regardless of Operating Pressure
- ISO 8573.1 Class 2 -40°F/C Standard Outlet Dewpoint
Standard Features:
- Power Requirements - 120 VAC, 1 Phase, 60 Hz
- Maximum Pressure - 150 PSIG Standard
- Maximum Operating Temperature - 120°F / 49°C
- Tower Pressure Gauges
- OSHA Approved Mufflers
- Desiccant Fill & Drain Ports
- ASME Safety Relief Valves
- Standby Mode
- Manual Cycle Stepping
- Control Line Filter / Regulator
Programmable timer, zero-loss drain and digital scroll compressor options available. Request a Quote
Specifications
-
Air Dryer Type
Desiccant
-
Tower Pressure Gauges Included
Yes
-
Hertz
60 HZ
-
Max Inlet Temp. (F)
120
-
Max PSI
150 PSI
-
Phase
1 Phase
-
Product Model
HRL
-
Voltage
120
-
Flow Rate (scfm)
2500
