Description

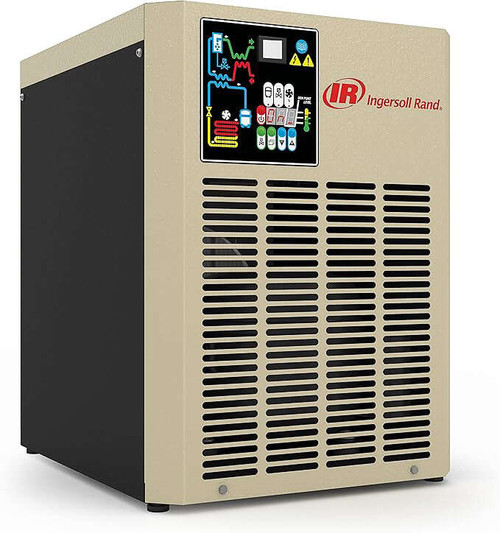

D42IN Ingersoll Rand Refrigerated Air Dryer
The D42IN Ingersoll Rand refrigerated air dryer is a compact industrial solution designed to remove moisture from compressed air systems and help maintain a consistent pressure dew point. Rated for 42 SCFM, this dryer is built for applications that require reliable air treatment in a space-saving footprint.
This model combines efficient moisture removal with user-friendly controls and automatic condensate drainage. Its multi-stage design helps reduce residual contaminants while supporting dependable dryer performance across changing load conditions.
Key Features
- 42 SCFM capacity: Sized for small to mid-range compressed air systems.
- 203 PSI maximum pressure: Suitable for demanding industrial applications.
- 115V / 1 Phase / 60 Hz: Standard electrical configuration for straightforward installation.
- Multi-function control panel: Includes multiple alarm displays and an energy-saving mode.
- Programmable electronic drain valve: Minimizes air loss during condensate removal.
- Multi-stage filtration design: Helps remove residual contaminants from the air stream.
- Compact footprint: 16L x 18W x 18H for easier installation in tight equipment rooms.
Benefits
- Protects downstream equipment: Reduces moisture-related issues in tools, filters, and air lines.
- Improves air quality: Helps deliver cleaner, drier compressed air for industrial processes.
- Reduces operating waste: Electronic drain valve helps limit unnecessary compressed air loss.
- Simplifies monitoring: Alarm displays and controls make performance checks easier.
- Supports consistent dryer performance: Designed to maintain dew point control across varying loads.
Technical Details
- Flow Capacity: 42 SCFM
- Maximum Pressure: 203 PSI
- Voltage: 115-1-60
- Weight: 62 lbs
- Dimensions: 16L x 18W x 18H
- Standards: Satisfies ISO 7183 industry standards
Application Notes
- Designed for industrial compressed air systems that require refrigerated moisture removal.
- Install in a clean, ventilated area with adequate clearance for service access.
- Best suited for applications where dry compressed air is needed to protect downstream components and processes.
Frequently Asked Questions
D42IN Ingersoll Rand Refrigerated Air Dryer
▶️ Question: What does a refrigerated air dryer do?
Answer: A refrigerated air dryer removes moisture from compressed air to help prevent corrosion, contamination, and water-related issues in downstream equipment.
▶️ Question: What is the airflow rating of the D42IN?
Answer: The D42IN is rated for 42 SCFM.
▶️ Question: Why is the electronic drain valve important?
Answer: The programmable electronic drain valve helps remove condensate efficiently while minimizing unnecessary compressed air loss.
