Description

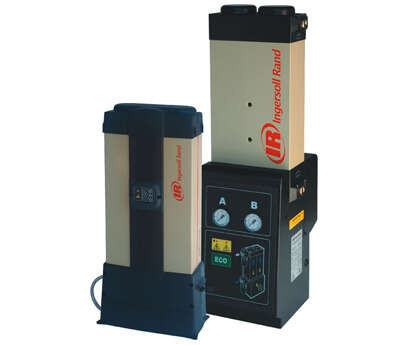

Perfect for outdoors or low ambient applications, Ingersoll-Rand's modular air dryers make it easier and more affordable than ever to deliver high-quality compressed air. This dryer helps prevent corrosion and minimizes production disruptions or losses due to moisture or contamination. And, because noise levels are so low (75 dB) and the dryer's remote exhaust feature offers further enhanced noise suppression, the unit can be installed right in the work environment. This refrigerant-free unit is designed with NEMA 4/IP-66 enclosures and in accordance with ASME, PED, CSA, UL AND CRN standards.
- High-efficiency filtration and dessicant bed absorption provides clean, dry air
- Compact, fully integrated unit is installed at point-of-use, so you pay for drying only the air needed
- Conservative pressure drop lowers power costs
- Prevents corrosion and minimizes production disruptions
- For use with compressors with aftercoolers
Technical Details
- 88 SCFM (airflow)
- 489 Max PSI
- 115-1-60/230-1-50 voltage
- Two pressure dew points available: -40F and -100F
- Energy Conservation Operation model available
- Weight: 176 pounds
- Dimensions: 22L x 9W x 56H
