Description

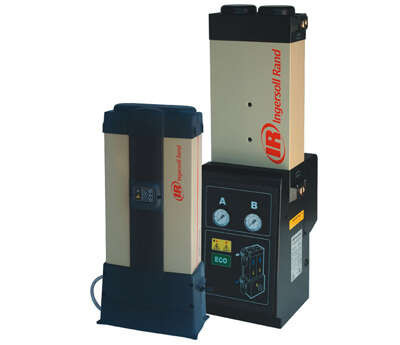

Perfect for outdoors or low ambient applications, Ingersoll-Rand's innovative modular air dryers make it easier and more affordable than ever to deliver high-quality compressed air. This dryer helps prevent corrosion and minimizes production disruptions or losses due to moisture or contamination. And, because noise levels are so low (<75 dB) and the dryer's remote exhaust feature offers further enhanced noise suppression, the unit can be installed right in the work environment. This refrigerant-free unit is designed with NEMA 4/IP-66 enclosures and in accordance with ASME, PED, CSA, UL AND CRN standards.
- High-efficiency filtration and desiccant bed absorption provides clean, dry air
- Compact, fully integrated unit is installed at point-of-use, so you pay for drying only the air needed
- Conservative pressure drop lowers power costs
- Prevents corrosion and minimizes production disruptions
- For use with compressors with aftercoolers
Technical Details
- 3 SCFM (air flow)
- 175 Max PSI
- 115-1-60/230-1-50 electrics with -40 degree pressure dew point
- Weight: 24 pounds
- Dimensions: 6L x 11W x 17H
