Description

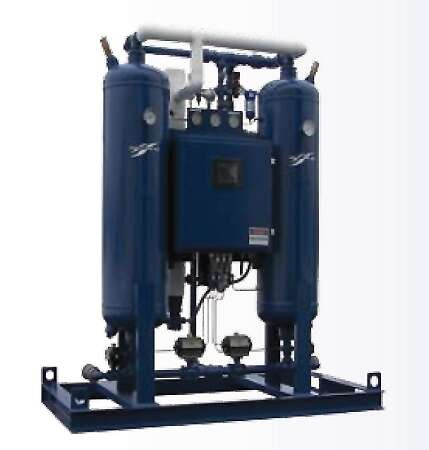

The GEH-650 externally heated regenerative air dryer from Great Lakes Air meets the industry's highest quality and parts standards. Design features include:
- Desiccant support screens that are fabricated from heavy gauge perforated stainless steel, preventing particle buildup and high pressure drops.
- A gap-free ceramic directional control valve that creates a nearly indestructible, perfect seal where dirt and oil do not accumulate.
- An all-stainless steel, high-flow design process check valve with extraordinary service life.
- A Digital Sequence Controller that gives you total, flexible control for use, maintenance and troubleshooting.
Plus, Great Lakes Air regenerative air dryers include:
- NEMA 12 electrical
- Illuminated On/Off power switch
- Tower pressure gauges
- OSHA approved
- ASME relief valves
- 5-Year heater warranty
- Insulated heater & purge piping
- 16 watt In2 incoloy sheath heater
- Control air filter
- Desiccant fill & drain ports
- Adjustable purge flow w/ indicator
Technical Details
- Capacity: 650 SCFM at 100F
- Desiccant weight: 910 pounds
- Purge rate: 45.5 SCFM
- Heater Kw: 6
- Dimensions: 86H x 77W x 33D
