Description

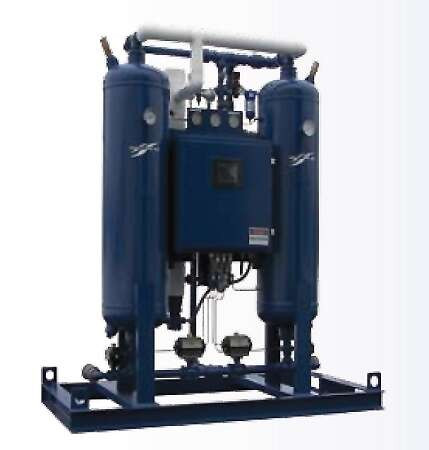

The GEH-800 externally heated regenerative air dryer from Great Lakes Air meets the industry's highest quality and parts standards. Design features include:
- Desiccant support screens that are fabricated from heavy gauge perforated stainless steel, preventing particle buildup and high pressure drops.
- A gap-free ceramic directional control valve that creates a nearly indestructible, perfect seal where dirt and oil do not accumulate.
- An all-stainless steel, high-flow design process check valve with extraordinary service life.
- A Digital Sequence Controller that gives you total, flexible control for use, maintenance and troubleshooting.
Plus, Great Lakes Air regenerative air dryers include:
- NEMA 12 electrical
- Illuminated On/Off power switch
- Tower pressure gauges
- OSHA approved
- ASME relief valves
- 5-Year heater warranty
- Insulated heater & purge piping
- 16 watt In2 incoloy sheath heater
- Control air filter
- Desiccant fill & drain ports
- Adjustable purge flow w/ indicator
Technical Details
- Capacity: 800 SCFM
- Desiccant weight: 1120 pounds
- Purge rate: 56.0 SCFM
- Heater Kw: 8
- Dimensions: 88H x 80W x 39D
