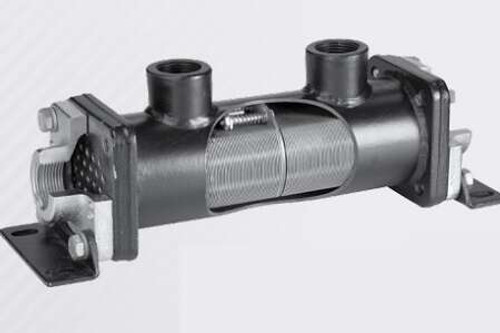

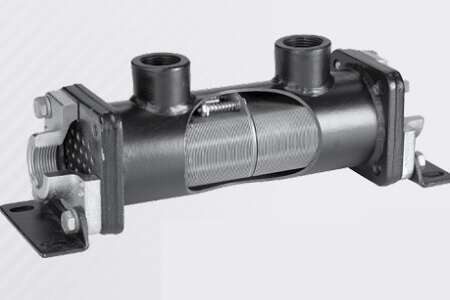

EK-518 Water-Cooled Oil Cooler – Air Compressor Replacement Part
The EK-518 water-cooled oil cooler is designed for thermal transfer in industrial air compressor systems, helping regulate oil temperature and maintain stable operating conditions. By removing excess heat from compressor oil, this unit supports efficient system performance and protects critical components.
Constructed from copper and steel, the EK-518 delivers high-efficiency heat exchange in a compact design. It is engineered to handle demanding applications while minimizing flow restriction and supporting consistent cooling performance.
Key Features
- Copper and steel construction: Durable materials for efficient heat transfer.
- High-efficiency finned bundle design: Maximizes cooling performance.
- Compact footprint: Saves space in equipment layouts.
- Removable end bonnets: Allows easier maintenance and cleaning.
- Flexible mounting design: Can be rotated in 90° increments.
- Large oil connections: Minimizes flow restriction.
Benefits
- Maintains proper oil temperature: Prevents overheating and thermal breakdown.
- Extends equipment life: Reduces stress on compressor components.
- Improves system efficiency: Supports stable compressor operation.
- Reduces maintenance risk: Helps prevent heat-related failures.
Technical Details
- Heat Removal Capacity: Up to 400 HP (300 kW)
- Oil Flow Rate: Up to 80 GPM (300 L/min)
- Tube Size: 3/16"
- Design Type: Finned bundle heat exchanger
- Construction: Copper and steel
Application Notes
- Used in industrial air compressor systems for oil cooling and thermal management.
- Ensure proper water supply and flow rate for optimal performance.
- Regular maintenance and cleaning help maintain heat transfer efficiency.
Frequently Asked Questions
EK-518 Water-Cooled Oil Cooler
▶️ Question: What does an oil cooler do?
Answer: It removes heat from compressor oil to maintain proper operating temperatures and protect system components.
▶️ Question: Why is oil temperature control important?
Answer: Proper temperature helps prevent oil breakdown, reduces wear, and supports efficient compressor operation.
▶️ Question: What type of systems is this used in?
Answer: It is used in industrial air compressor systems that require oil cooling and thermal management.
