Description

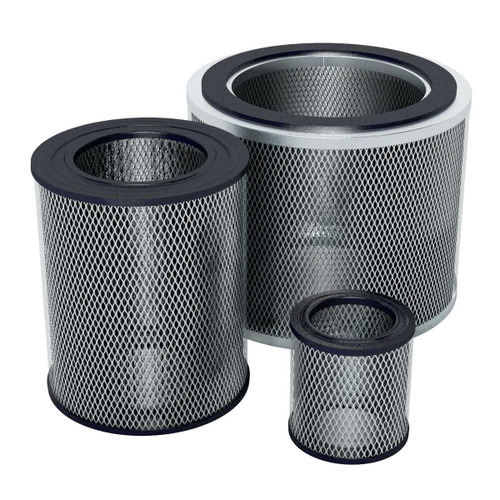

32-10S Replacement Filter Element Wire Mesh - Solberg Manufacturing
Specifications (32-10S):
- Media: wiremesh
- Element size (in): HT 8.63, OD 13.75, ID 11.63
- Weight: 3 lb
- Alternate media version: 32-11
Features:
- Pleated media for high dirt holding capacity
- Polyester: reinforced with epoxy coated steel wire on both sides of cloth, expanded metal I.D.
- Paper: heavy duty industrial strength paper surrounded by galvanized expanded metal
- 40 - 50% increased dust loading capacity with prefilter (part number suffix P, select models)
Technical Specifications:
- Polyester: 99+% removal efficiency standard to 5 micron
- Paper: 99+% removal efficiency standard to 2 micron
- Temp (continuous): min -15°F (-26°C), max 220°F (104°C)
- Filter change out differential: 15-20" H2O over initial ΔP
