Description

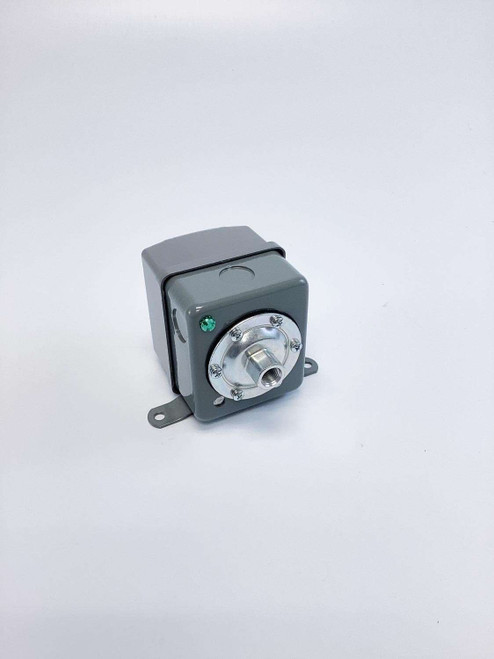

Pressure switch installable anywhere in a pneumatic or hydraulic system, often used to protect air compressors and pneumatically operated equipment from over-pressurization. Settable normally open or closed with an adjustable actuation range from 10 PSIG to 110 PSIG with +/-2% repeatability; standard 18" wire leads of 300 V, 22 SWG.
Specifications — Thread: 1/4"; Adjustment range (psi): 25 to 95 PSIG
Material: Zinc die cast and plastic housing; NEMA 13 electrical enclosure, UL approved
Max pressure: 300 psi
Temperature range: 35F to 180F
