Description

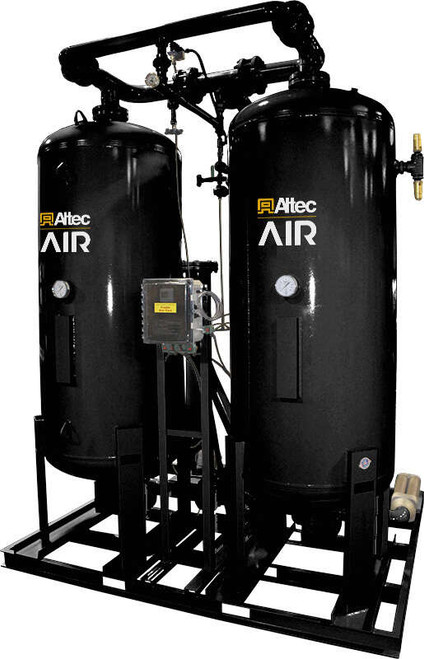

Altec AIR’s HLD Series Low Dew Point Heatless Desiccant Air Dryers are designed to provide -100°F / -73°C Pressure Dew Point (PDP) for a variety of industries and applications, including those in ultra-low ambient temperatures.
- -100°F / -73°C Pressure Dew Point (PDP) Standard
- Factory installed Filters w/ Differential Pressure Gauges and Pre-Filter Timer Drain
- E-Z Switching Valves for Extreme Valve Life
- Feature Rich ETL Listed Pro-Logic Controller w/ NEMA 4 Enclosure
- Optimum Factory Pre-Set Purge Regardless Of Operating Pressure
Standard Features:
- Power Requirements - 120 VAC, 1 Phase, 60 Hz
- Maximum Pressure - 150 PSIG Standard
- Maximum Operating Temperature - 120°F / 49°C
- Selectable Cycles
- 3-Way Inlet Valve Reduces Number of Valves
- Hard Point Mounting for Installation Integrity
- ASME Safety Relief Valves
- Delta PSI Gauges Filters For Element Condition
- Regulated Purge (HLD-0100 & Larger)
- Independent Re-Pressurization Circuit
