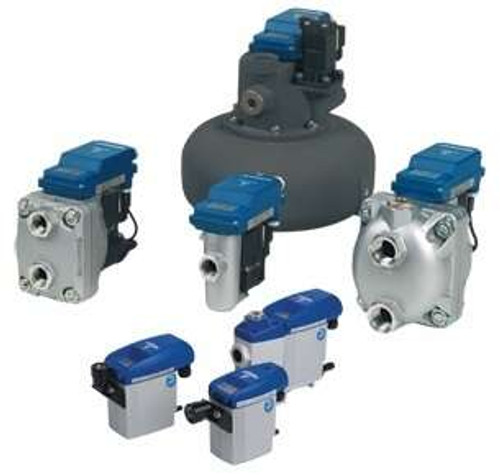

BEKOMAT 13 KA13-A20-A6 Zero-Loss Condensate Drain – Air Compressor Replacement Part
The BEKOMAT 13 KA13-A20-A6 is a zero-loss condensate drain designed to automatically remove moisture from industrial air compressor systems without releasing compressed air. This demand-based operation improves system efficiency while maintaining reliable condensate removal.
With over 1.5 million units installed worldwide, BEKOMAT drains are trusted for their durability and consistent performance. The KA13 model is engineered for efficient operation with minimal maintenance, making it ideal for industrial compressed air applications.
Key Features
- Zero-loss operation: Discharges condensate without wasting compressed air.
- Sensor-controlled activation: Drains only when condensate is present.
- Integrated alarm and fault signals: Supports remote monitoring and diagnostics.
- Aluminum housing: Suitable for oil and oil-free condensate applications.
- Large internal flow passages: Helps prevent emulsification and clogging.
Benefits
- Reduces energy costs: Eliminates compressed air loss during drainage.
- Improves system efficiency: Maintains consistent air quality.
- Minimizes maintenance: Automatic operation reduces manual intervention.
- Reliable long-term performance: Designed for high cycle life operation.
Technical Details
- Maximum Flow Rate: 1300 SCFM
- Pressure Range: 12 – 232 PSIG
- Temperature Range: 34°F – 140°F
- Weight: 4.4 lbs
- Housing: Aluminum
Application Notes
- Used on air receivers, dryers, filters, and condensate collection points.
- Ideal for systems where energy efficiency and zero air loss are priorities.
- Verify system pressure and flow requirements before installation.
Frequently Asked Questions
BEKOMAT 13 KA13-A20-A6 Condensate Drain
▶️ Question: What is a zero-loss condensate drain?
Answer: It removes condensate without releasing compressed air, improving efficiency and reducing energy loss.
▶️ Question: How does this differ from a timer drain?
Answer: Timer drains operate on a schedule, while this unit drains only when condensate is detected.
▶️ Question: What systems is this suitable for?
Answer: It is designed for industrial compressed air systems including tanks, dryers, and filters.
