Description

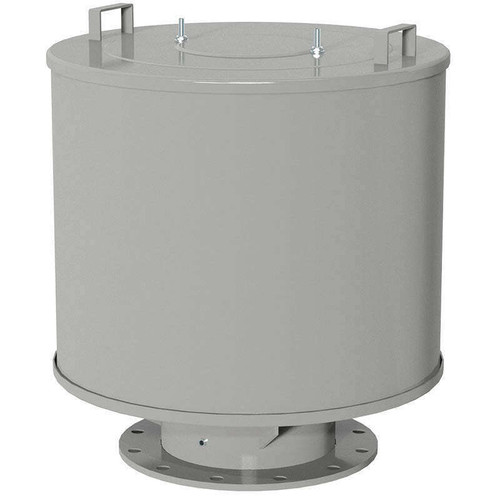

2G-485P-800F Premium Grade Silencer Filter - 2G Series - Solberg Manufacturing
Specifications (2G-485P-800F):
- Connection: 8" ANSI FLANGE
- Flow rating: 1800 SCFM
- Media: polyester 5 micron
- Efficiency: 99+%
- Dimensions (in): A 31.51, B 6, C 28.31
- Weight: 142 lb
- Suggested service height: 22 in
- Replacement element: 485P
- Alternate media version: 2G-484P-800F
Features:
- Fully drawn carbon steel weatherhood (3" to 6" connections only)
- Multiple silencing features to reduce and deaden sound - Tubular Silencing: tubes placed to maximize attenuation - Quiet Band Support: with "Quiet band" technology, utilizes sound suppression in the design of the housing
- Internal Silencer: center tubular silencer
- 1/8" NPSC tap hole standard
- Low pressure drop housing design
- Corrosive resistant gray powder coat carbon steel
Technical Specifications:
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O over initial ΔP
- Polyester: 99%+ removal efficiency standard to 5 micron
- Paper: 99%+ removal efficiency standard to 2 micron
