Description

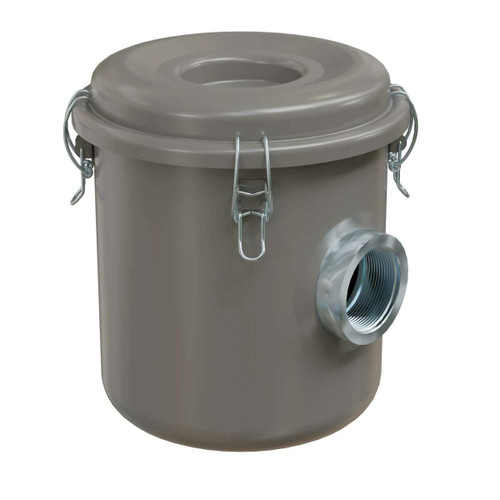

CSL-850-200KC Compact Vacuum Filter - CSL Series - Solberg Manufacturing
Solberg's CSL Series is designed to protect equipment from contaminants carried over from a variety of industrial processes. Ideal for rough-medium vacuum service, the CSL can be utilized in systems where standard duty flanges and threaded connections are acceptable. Multiple filter element media options offer superior protection and longevity for the vacuum system.
Specifications (CSL-850-200KC):
- Connection: 2" NPSC
- Flow rating: 175 SCFM (element 290 SCFM)
- Media: paper 2 micron
- Efficiency: 99+%
- Dimensions (in): A 10.1, B 4.46, C 8.74, D 4.97
- Weight: 15 lb
- Suggested service height: 9 in
- Replacement element: 850
- Alternate media version: CSL-851-200KC
Features:
- Seamless drawn housings
- O‐ring seal
- Corrosive resistant powder coat carbon steel
- Stainless steel torsion clips for durability
Benefits:
- Large holding capacity and easy field cleaning, especially when mounted horizontally or inverted
- Low pressure design
Technical Specifications:
- Vacuum Rating: medium vacuum service (33 to 1.3x10-3)
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O over initial ΔP
- Polyester: 99%+ removal efficiency standard to 5 micron
- Paper: 99%+ removal efficiency standard to 2 micron
