Description

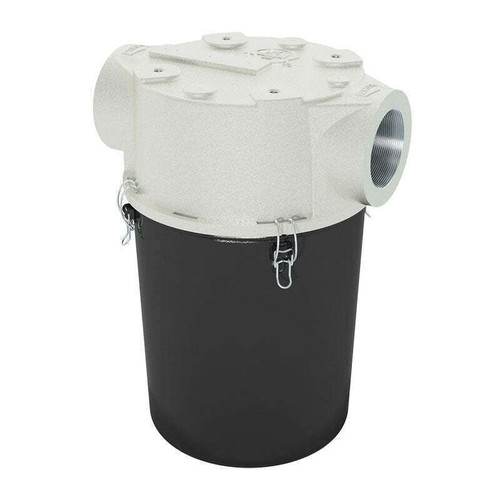

CT-274P-500C T Style Vacuum Filters - CT Series - Solberg Manufacturing
Specifications (CT-274P-500C):
- Connection: 5" FNPT
- Flow rating: 800 SCFM
- Media: paper 2 micron
- Efficiency: 99+%
- Weight: 38 lb
Features:
- Compact design for space restrictions; min. service area
- Inlet above element for extended element life & maintenance intervals
- Corrosive resistant cast aluminum top with machined connec- tions and integrated baffle design
- T-style design minimizes piping requirements
- Black powder coat carbon steel drop down bucket
Technical Specifications:
- Vacuum Rating: medium vacuum service (33 to 1.3x10-3)
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O over initial ΔP
- Polyester: 99%+ removal efficiency standard to 5 micron Inlet
- Paper: 99%+ removal efficiency standard to 2 micron
