Description

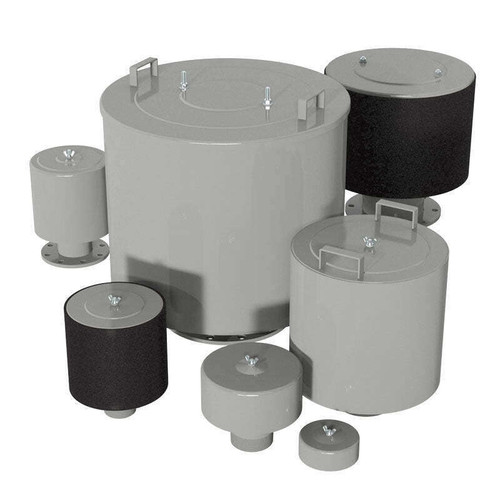

F-15-125 Filter Assemblies-F Series - Solberg Manufacturing
Specifications (F-15-125):
- Connection: 1.25" MNPT
- Flow rating: 70 SCFM
- Media: polyester 5 micron
- Efficiency: 99+%
- Weight: 2 lb
Features:
- Fully drawn weatherhood
- Low entry velocity air gap between base and cover
- Heavy gauge base with low pressure drop outlet pipe and center bracket design
- Corrosive resistant gray powder coat carbon steel
Technical Specifications:
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O over initial ΔP
- Polyester: 99%+ removal efficiency standard to 5 micron
- Paper: 99%+ removal efficiency standard to 2 micron
