Description

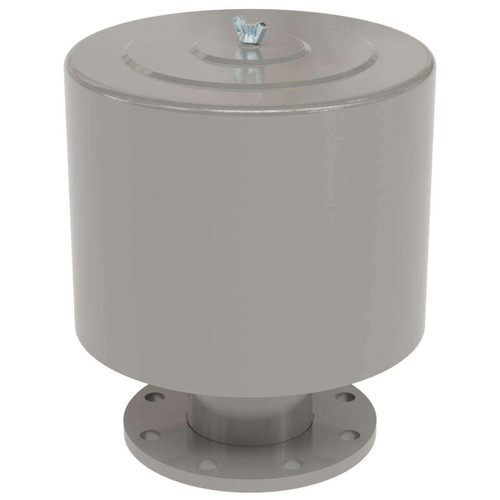

F-245P-400F Filter Assemblies-F Series - Solberg Manufacturing
Specifications (F-245P-400F):
- Connection: 4" ANSI FLANGE
- Flow rating: 520 SCFM
- Media: polyester 5 micron
- Efficiency: 99+%
- Dimensions (in): A 15, B 4, C 12.13
- Weight: 27 lb
- Suggested service height: 10 in
- Replacement element: 245P
- Alternate media version: F-244P-400F
Features:
- Fully drawn weatherhood
- Low entry velocity air gap between base and cover
- Heavy gauge base with low pressure drop outlet pipe and center bracket design
- Corrosive resistant gray powder coat carbon steel
Technical Specifications:
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O over initial ΔP
- Polyester: 99%+ removal efficiency standard to 5 micron
- Paper: 99%+ removal efficiency standard to 2 micron
