Description

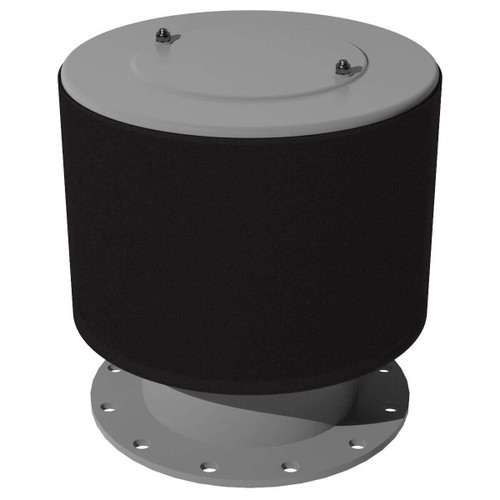

FT-384P-1200F Exposed Filters-FT Series - Solberg Manufacturing
Specifications (FT-384P-1200F):
- Connection: 12" ANSI FLANGE
- Flow rating: 3300 SCFM
- Media: paper 2 micron
- Efficiency: 99+%
- Weight: 86 lb
Features:
- Exposed element for optimal air flow & low restriction
- Heavy gauge base with low pressure drop outlet pipe and center bracket design
- Corrosive resistant gray powder coat carbon steel
Technical Specifications:
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O over initial ΔP
- Polyester: 99%+ removal efficiency standard to 5 micron
- Paper: 99%+ removal efficiency standard to 2 micron C
