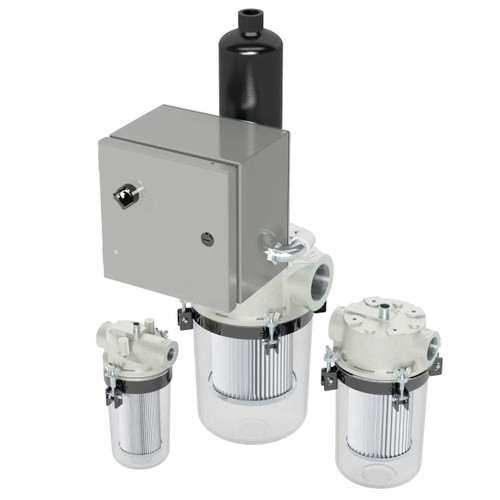

RST-TF851/1-200C Reverse Pulse Industrial Filter - Solberg Manufacturing
The reverse pulse RST Series incorporates split second bursts of pressurized air to create a powerful shock wave that cleans the filter element and extends its service life. Quick pulses cause particulate sitting on the element's pleated surface area to release and collect in the drop out area of the filter housing. Pulses can be repeated as required and can occur during a running process because the split second air bursts have minimal effect on the process pressure. (Optional pulse kit is available.)
Specifications (RST-TF851/1-200C):
- Connection: 2" NPSC
- Flow rating: 66 SCFM
- Media: PTFE 0.3 micron
- Efficiency: 99.5%
- Dimensions (in): A 16.22, B 1.98, C 9, D 12.42
- Weight: 15 lb
- Suggested service height: 9 in
Features:
- See-through bucket made from shatter resistant polycarbonate material
- High tensile strength permits dimensional stability
- Integrated inlet baffle
- Tap on center of cast head for optional reverse pulse kit air pulse rod: 3/8" FNPT tap on 1" sizes, 3/4" FNPT tap on 2 - 4" sizes
- Sturdy hook clamps secure bucket to head
Benefits:
- Superior level of filtration offers enhanced equipment protection (PTFE style elements)
- Extends the life of filter element, reducing overall cost
- See-through design allows for instant visual inspection
Technical Specifications:
- Vacuum rating: medium vacuum service
- PTFE media: 99.5% efficiency to 0.3 micron
- Temperature ratings: - Complete assembly: max 220°F (104°C) - See-through bucket only: max 257°F (125°C)
