Description

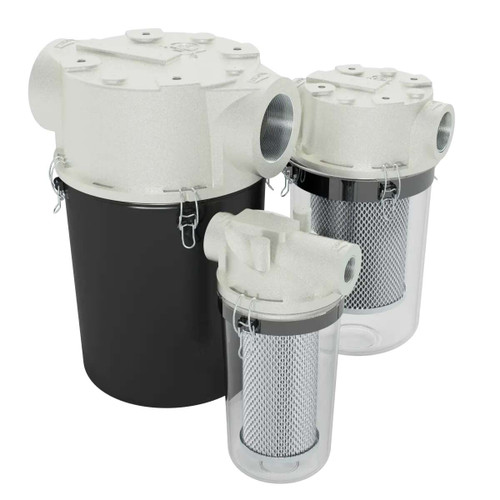

ST-8450-075C See-Through Bucket T Style Filters - ST Series - Solberg Manufacturing
Solberg's ST Series is designed to offer exceptional performance across a broad range of vacuum applications. The transparent housing offers users the ability to inspect filter elements without disassembling the unit. Ideal for rough-medium vacuum service, this compact design offers a smaller service footprint, allowing for easy access and quick maintenance in tight spaces. Multiple filter element media options offer superior protection and longevity for the vacuum system.
Specifications (ST-8450-075C):
- Connection: 3/4" NPSC
- Flow rating: 25 SCFM
- Media: paper 2 micron
- Efficiency: 99+%
- Dimensions (in): A 8.38, B 1, C 5, D 6.13
- Weight: 3 lb
- Suggested service height: 5 in
- Replacement element: 8450
- Alternate media version: ST-8451-075C
Features:
- Easy maintenance due to see-through bucket
- Compact design for space restrictions; min. service area
- Inlet above element for extended element life & maintenance intervals
- Corrosive resistant cast aluminum construction
- T-style design minimizes piping requirements B
- Shatter-resistant polycarbonate drop down bucket Inlet
Technical Specifications:
- Vacuum Rating: medium vacuum service A
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O over initial ΔP
- Polyester: 99%+ removal efficiency standard to 5 micron
- Paper: 99%+ removal efficiency standard to 2 micron
