Description

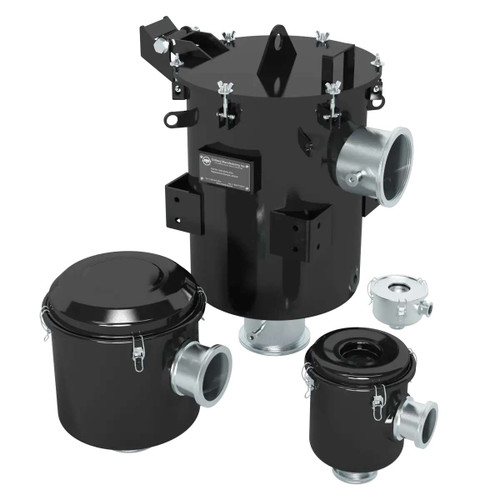

WL-824-NW16B Inlet Med-High Vacuum Filter L-Style Black - Solberg Manufacturing
Solberg's WL Series Vacuum Filters are designed for a variety of industrial and semicon processes where rapid thermal and/ or pressure cycles create harsh operating conditions. Ideal for medium-high vacuum applications that utilize vacuum furnaces or deposition tools, the WL series comes standard with a variety of vacuum rated flange options and replaceable filter elements that offer superior protection and longevity for the vacuum system. Housings in this series are 100% helium leak tested to ensure vacuum integrity and verify leak rates down to 1x10-5 mbar L/s.
Specifications (WL-824-NW16B):
- Connection: NW16 ISO FLANGE
- Flow rating: 23 SCFM
- Media: paper 2 micron
- Efficiency: 99+%
- Dimensions (in): A 4.07, B 2.61, C 3.74, D 2.27
- Weight: 0.88 lb
- Suggested service height: 3 in
- Replacement element: 824
- Alternate media version: WL-825-NW16B
Features:
- Stainless steel ISO flange connections
- Seamless drawn housings
- Corrosive resistant powder coat carbon steel
- Powder coat finish (black models)
- O-ring housing seal
- Stainless steel torsion clips
Technical Specifications:
- Vacuum leak rate: 1x10-5 mbar L/sec (verified by helium leak test)
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O over initial ΔP
- Polyester: 99%+ removal efficiency standard to 5 micron
- Paper: 99%+ removal efficiency standard to 2 micron
