IRN 7.5–15 HP — Enclosure

Ingersoll Rand IRN 7.5–15 HP rotary screw compressor enclosure diagram and parts catalo

Item	CCN	Qty	Description	Item	CCN	Qty	Description
1	42579870	1	Sub-base	20	22053433	4	Cap, (beige)
2	22058580	4	Cover	21	22548051	1	Panel, top
3	22867253	1	Panel	22	22382154	1	Cover
4	22598072	1	Enclosure	22	22524540	1	Cover BP
5	22355226	2	Handle	22	22528236	1	Cover BP (TAS)
6	22544944	4	Latch	23	23380422	8	Cap
7	22489017	1	Panel, front	26	22544951	2	Latch
8	22863823	1	Panel, rear	27	92512540	4	Rivet
9	22380398	1	Support	28	22556153	1	Panel, instrument (TAS)
10	22597246	1	Panel, access	28	22380042	1	Panel, instrument (Without air treatment system)
11	22867238	1	Panel, electrical	29	96716105	10	Screw
12	22423339	1	Cover	30	39917489	2	Screw
13	92368687	AR	Screw	31	22545099	2	Washer
14	22489041	1	Panel	32	22398572	1	Grommet
15	22363725	1	Pre filter	33	22597652	1	Cover
16	22393177	1	Grille	34	39117312	1	Cover
17	22489066	1	Housing, blower	35	22850457	2	Keeper, Latch
18	22489058	1	Housing, blower	36	23073299	12	Rivet
19	22489033	1	Panel, blower guard

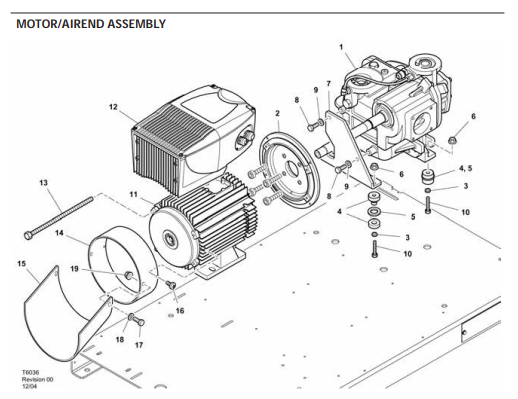

IRN 7.5–15 HP — Motor/Airend Assembly

Ingersoll Rand IRN 7.5–15 HP motor and airend assembly diagram with CCN callouts

Item	CCN	Qty	Description	Item	CCN	Qty	Description
1-2	22465918	1	Airend	12	See note	1	Drive assembly (Low voltage)
2	22237630	1	Plate, drive	12	See note	1	Drive assembly (High voltage)
3	96740188	4	Washer	13	22311609	4	Screw
4	22355341	4	Mount, airend	14	22365209	1	Ring
5	96726971	8	Washer	15	22403869	1	Deflector (Low voltage only)
6	96704416	4	Nut	16	22475826	2	Screw
7	22288633	1	Support	17	96716105	2	Screw
8	96702824	2	Screw	18	96705199	2	Washer
9	96728316	2	Washer	19	96742747	2	Nut
10	96712252	4	Screw
11	22975551	1	Motor (Low voltage)
11	22975569	1	Motor (High voltage)				NOTE: See “CONVERSION KITS”section

IRN 7.5–15 HP — Cooling System

IRN 7.5–15 HP compressor cooling system diagram including fan, cooler, and hoses

Item	CCN	Qty	Description	Item	CCN	Qty	Description
1	22517767	1	Cooler, Oil/Air	27	85559573	1	Hose assembly
2	22377857	2	Pad	28	96746078	1	Elbow
3	39917489	4	Screw	29	22519672	1	Hose assembly
4	22463368	1	Actuator	30	96746060	1	Connector
5	22856991	1	Cage	31	85560167	1	Hose assembly
6	22186696	1	Spring	32	95984563	1	Elbow
7	92490358	AR	Tube (Nylon)	33	22380216	1	Valve, check
8	89243778	1	Filter assembly	34	22378665	1	Valve, relief (ASME)
9	95235156	1	Clamp	34	22401590	1	Valve, relief (PED)
10	22937742	1	Valve, inlet	35	92067933	1	Elbow
11	54636501	2	Gasket	36	22601926	1	Adaptor
12	92788959	1	Connector	37	22275879	1	High air temperature switch
13	92354539	1	Nipple	38	39404165	1	‘O’ Ring
14	22995427	1	Valve, blowdown	39	89246078	1	Seal, Spacer
15	92067933	1	Elbow	40	23134430	1	Valve, minimum pressure
16	96708060	4	Screw	41
17	39329602	1	Filter	42	96746086	1	Tee
18	39328943	1	Nipple	43	22708440	1	Hose assembly
19	22388045	1	Element, separator	44	22182265	1	Cap
20	22232813	1	Stem	45	39324496	1	Sight-glass
21	95025466	1	‘O’ Ring	46	95022133	1	‘O’ Ring
22	22305965	1	Connector	47	96704671	4	Washer
23	22456214	1	Manifold	48	22471817	1	Baffle
24	96746052	1	Connector	49	22476618	1	Adaptor
25	95992871	1	Elbow	50	22456388	1	Valve, drain
26	22186688	1	Plug	51	22476667	1	Plug

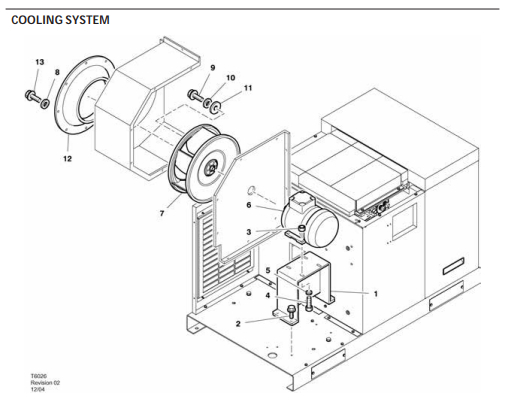

IRN 7.5–15 HP — Cooling System

Item	CCN	Qty	Description	Item	CCN	Qty	Description
1	22354047	1	Support	7	22482210	1	Blower
2	96704408	4	Screw	8	96745559	4	Washer
3	96704234	4	Nut	9	96740980	1	Screw
4	96714340	4	Screw	10	96742788	1	Washer
5	96727573	4	Washer	11	96740287	1	Washer
6	22362180	1	Motor 50/60Hz. (High voltage)	12	54747423	1	Cone
	22383491	1	Motor 60Hz. (Low voltage)	13	39917489	4	Screw

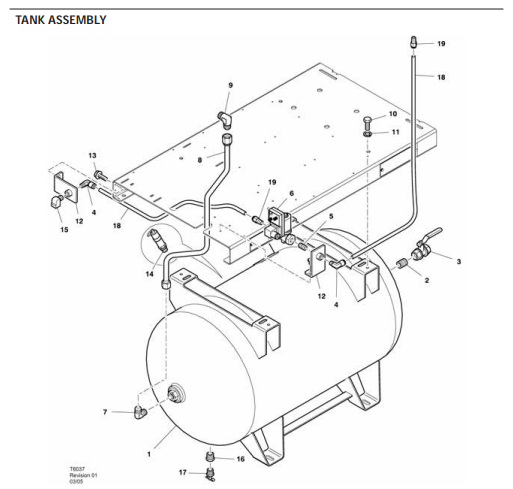

IRN 7.5–15 HP — Tank Assembly

IRN 7.5–15 HP receiver tank assembly diagram with tubing, valves, elbows, and brackets

Item	CCN	Qty	Description	Item	CCN	Qty	Description
1	22325500	1	Tank 80 Gal.	8	22532246	1	Tube assembly 80 Gal (Without air treatment system)
	22348296	1	Tank 120 Gal.		22535520	1	Tube assembly 80 Gal (TAS)
	22348304	1	Tank 272 Litre.		22532253	1	Tube assembly 120 Gal (Without air treatment system)
	22348312	1	Tank 500 Litre.		22535546	1	Tube assembly 120 Gal (TAS)
2	95458808	1	Nipple		22524599	1	Tube assembly 272 Litre (Without air treatment system)
	92255934	1	Nipple		22535553	1	Tube assembly 272 Litre (TAS)
3	32106569	1	Valve, ball		22532261	1	Tube assembly 500 Litre (Without air treatment system)
	93179661	1	Valve, ball		22535561	1	Tube assembly 500 Litre (TAS)
4	39155650	2	Elbow		85560886	1	Hose assembly BP (TAS)
5	95667341	1	Nipple
6	22612931	1	Valve, drain
7	95937637	1	Elbow NPT		92176692	1	Elbow BSPT
9	95279543	1	Elbow NPT-1/2	15	37143542	1	Elbow
	92106210	1	Connector BSPT-3/4	16	95037412	1	Bush, reducing
10	96719869	4	Screw		92354380	1	Bush, reducing
11	96739933	4	Lockwasher	17	32027120	1	Valve, drain
12	22457824	2	Bracket EDV		92258706	1	Valve, drain
13	92368687	4	Screw	18	39124821	AR	Tube (Nylon)
14	22052450	1	Valve, safety (ASME)	19	39156419	2	Connector
	22401590	1	Valve, safety (PED)

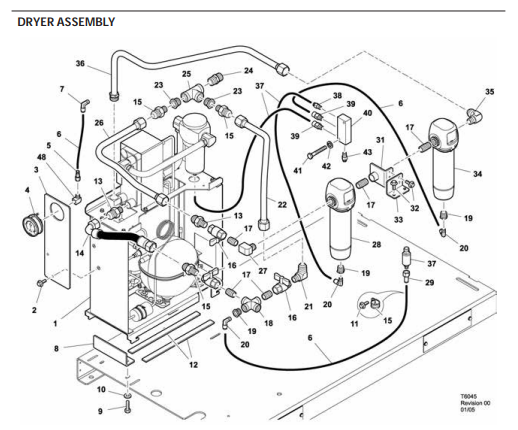

IRN 7.5–15 HP — Dryer Assembly

IRN 7.5–15 HP integrated dryer assembly diagram with filters, pressure gauge, tubing, and fittings

Item	CCN	Qty	Description	Item	CCN	Qty	Description
1	42578732	1	Dryer X1015 60Hz	19	95245361	3	Bush, reducing
	42578740	1	Dryer 50Hz	20	22601389	3	Elbow
2	96717525	2	Screw	21	95279543	1	Elbow
3	22548713	1	Panel	22	22533749	1	Tube assembly
4	22487110	1	Gauge, pressure	23	95953949	2	Bush, reducing
5	22420376	1	Adaptor	24	92255934	1	Connector
6	92490358	AR	Tube (Nylon)	25	95497285	1	Tee
7	54403266	1	Elbow	26	22533723	1	Tube assembly
8	22495873	1	Bracket	27	16545998	1	Elbow
9	96701958	2	Screw	28	42515825	1	Filter
10	96705199	2	Washer		88342993	1	Element IRGP64
11	39917489	1	Screw	29	22420046	1	Adaptor
12	85038412	2	Gasket	31	22532519	1	Bracket
13	95279378	5	Adaptor	32	92368687	2	Screw
14	85560209	1	Hose assembly	33	22532501	1	Bracket
15	22410674	1	Clamp	34	42515957	1	Filter
16	54450176	3	Valve, ball		88343025	1	Element IRHE64
17	95934279	5	Nipple
18	95828661	1	Cross
35	95279543	1	Elbow	42	96727573	2	Lockwasher
36	22533731	1	Tube assembly	43	39156419	1	Connector
37	22359632	1	Transducer, pressure	44	22359632	1	Transducer, pressure
38	22601371	3	Adaptor	45	22420046	1	Adaptor
39	22602197	2	Valve, check	46	22410674	1	Clamp
40	22480107	1	Manifold	47	39917489	1	Screw
41	96706809	2	Screw	48	37143542	1	Elbow

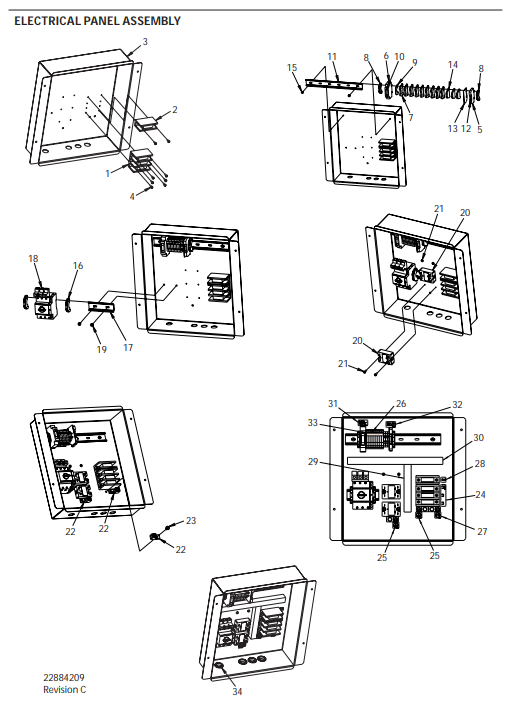

IRN 7.5–15 HP — Electrical Panel Assembly

Item	CCN	Qty	Description	Item	CCN	Qty	Description
1	22288237	1	BLOCK, POWER (PROJECT X)	19	96738828	2	SCREW, MACHINE PAN HEAD TYPE H M5 X 10.0 LONG
2	22628416	1	BLOCK, POWER 1-POLE 600V	20		2	RELAY, SOLID STATE
3	22867238	1	PANEL, ELECTRICAL NIRVANA 7-15HP/5-11KW	21	96705405	6	SCREW, M4 X 16 PHILLIPS PAN HD. 13M2AB158M3
4	96705405	8	SCREW, M4 X 16 PHILLIPS PAN HD. 13M2AB158M3	22	32342123	3	LUG, GROUNDING
5	22071823	1	BLOCK, TERMINAL FUSE	23	92368687	3	TAPTITE SCREW M6 X 1 X 12 LG
6		1	HOLDER, FUSE (1-POLE)	24	22429294	1	DECAL, LINE CONNECTIONS 3 PHASE
7	22540694	9	BLOCK, TERMINAL DIN RAIL MOUNTED	25	22477244	2	DECAL, GROUND SYMBOL
8	22541064	2	STOP, DIN RAIL	26	22500163	1	JUMPER, TWO T/B A/B # 1492-CJJ6-2
9	22546899	1	STOP, END BARRIER (DIN RAIL MOUNTED)	27	22559413	1	DECAL, PE GROUND SYMBOL
10		1	FUSE, 9A OR 6A	28	22628242	1	DECAL, LINE CONNECTIONS NEUTRAL
11	22867402	1	RAIL, DIN 300mm (11.81”) LONG	29	22628259	150 mm	TRUNKING, WIRE/CABLE 20mm DIA.
12		1	FUSE, 200MA OR 100MA	30	22628259	300 mm	TRUNKING, WIRE/CABLE 20mm DIA.
13	23096142	1	BARRIER, END	31		1	DECAL, FUSE REPLACEMENT 9A OR 6A
14	39252911	3	BLOCK, TERMINAL GND. (A-B P/N 1492-WG4)	32		1	DECAL, FUSE REPLACEMENT 200mA OR 100mA
15	96738828	2	SCREW, MACHINE PAN HEAD TYPE H M5 X 10.0 LONG	33	23096449	0.1	MARKER, IEC SNAP-1N, 1-8
16	22541064	2	STOP, DIN RAIL	34	22390132	4	GROMMET, INSULATION .812” I.D. X 1.25” O.D.
17	22860043	1	RAIL, DIN 100mm (3.94”) LONG
18		1	STARTER, MANUAL

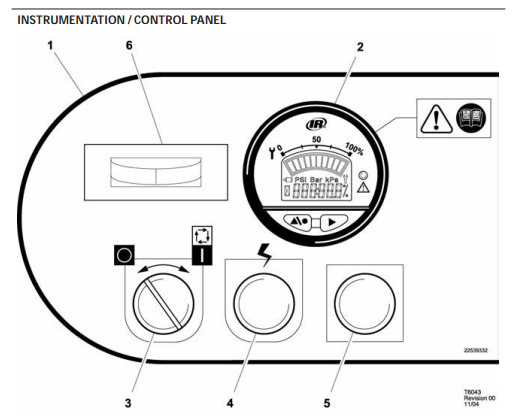

IRN 7.5–15 HP — Instrumentation / Control Panel

IRN 7.5–15 HP control panel and instrumentation diagram for contact-cooled rotary screw compressor

Item	CCN	Qty	Description	Item	CCN	Qty	Description
1	22539431	1	Decal (Without air treatment system)	4	22358501	1	Indicator, power on
	22355325	1	Decal (TAS)	5	22613889	1	Button, emergency stop
2	23361199	1	Indicator, service	6	22454540	1	Indicator, dew point (TAS)
3	22546725	1	Switch, ON/OFF

IRN 7.5–15 HP — Conversion Kits

CCN	Description
Intellikey Kits – USA
22974570	Kit, Intellikey (IRN−7−115−LV / IRN−7TAS−100−LV)
22974588	Kit, Intellikey (IRN−7−115−HV / IRN−7TAS−100−HV)
22974596	Kit, Intellikey (IRN−7−150−LV / IRN−7TAS−130−LV)
22974604	Kit, Intellikey (IRN−7−150−HV / IRN−7TAS−130−HV)
22974612	Kit, Intellikey (IRN−10−115−LV / IRN−10TAS−100−LV)
22974620	Kit, Intellikey (IRN−10−115−HV / IRN−10TAS−100−HV)
22974638	Kit, Intellikey (IRN−10−150−LV / IRN−10TAS−130−LV)
22974646	Kit, Intellikey (IRN−10−150−HV / IRN−10TAS−130−HV)
22974653	Kit, Intellikey (IRN−10−200−HV / IRN−10TAS−175−HV)
22974661	Kit, Intellikey (IRN−15−115−LV / IRN−15TAS−100−LV)
22974679	Kit, Intellikey (IRN−15−115−HV / IRN−15TAS−100−HV)
22974687	Kit, Intellikey (IRN−15−150−LV / IRN−15TAS−130−LV)
22974695	Kit, Intellikey (IRN−15−150−HV / IRN−15TAS−130−HV)
22974703	Kit, Intellikey (IRN−15−200−LV / IRN−15TAS−175−LV)
Intellikey Kits – ESA
22974711	Kit, Intellikey (IRN−5−8−LV / IRN−5TAS−7−LV)
22974729	Kit, Intellikey (IRN−5−8−HV / IRN−5TAS−7−HV)
22974737	Kit, Intellikey (IRN−5−10−LV / IRN−5TAS−9−LV)
22974745	Kit, Intellikey (IRN−5−10−HV / IRN−5TAS−9−HV)
22974752	Kit, Intellikey (IRN−7−8−LV / IRN−7TAS−7−LV)
22974760	Kit, Intellikey (IRN−7−8−HV / IRN−7TAS−7−HV)
22974778	Kit, Intellikey (IRN−7−10−LV / IRN−7TAS−9−LV)
22974786	Kit, Intellikey (IRN−7−10−HV / IRN−7TAS−9−HV)
22974794	Kit, Intellikey (IRN−7−14−HV / IRN−7TAS−12−HV)
22974802	Kit, Intellikey (IRN−11−8−LV / IRN−11TAS−7−LV)
22974810	Kit, Intellikey (IRN−11−8−HV / IRN−11TAS−7−HV)
22974836	Kit, Intellikey (IRN−11−10−LV / IRN−11TAS−9−LV)
22974844	Kit, Intellikey (IRN−11−10−HV / IRN−11TAS−9−HV)
22974851	Kit, Intellikey (IRN−11−14−HV / IRN−11TAS−12−HV)
Drive Kits
22975718	Drive, shippable LV
22975726	Drive, shippable HV
Stator / Drive Kits
22975528	Stator / Drive, (shippable) 1−15HP/5−11KW LV
22975536	Stator / Drive, (shippable) 1−15HP/5−11KW HV
22975543	Kit, stator

LV = 200 − 230V, HV = 380 − 460V

IRN 7.5–15 HP — Kit, PORO & High Dust Inlet Filter

CCN	Description
KIT, PORO
22877708	ASSEMBLY PORO ELECTRICAL PANEL
35275494	HUB
39101036	MOD ALARM HORN W/WEATHER RESISTANT BACK BOX
39108949	LOCKNUT .50 INCH SEALING
39146733	1/2" HOLE PLUG
92368687	SCREW TPG M6 X 1.0 X 14 LG
95785192	NIPPLE EXTRA STRONG .50 X 1.25 LONG
39120985	WIRE 16 GA - (RED)
39146790	WIRE 16GA - GREEN
39204763	WIRE 16 GA - BLUE
22847602	FUSE 1.25 AMP TIME DELAY CLASS CC - 600V
22847610	FUSE 6 AMP TIME DELAY CLASS CC - 380-415V
39192889	FUSE TIME DELAY 1 AMP CLASS CC
81291601	FUSE .5 AMP CLASS CC TIME DELAY
22847628	DECAL FUSE REPLACEMENT 1.25A 600V
22847636	DECAL FUSE REPLACEMENT 1A 600V
22847644	DECAL FUSE REPLACEMENT .6A 600V
22847651	DECAL FUSE REPLACEMENT .5A 600V
22140545	DECAL NOTICE PORO
92979964	DECAL POWER OUT RESTART OPTION
KIT, PORO – With Revision Control
23089030	DECAL ELECT. SCHEMATIC 3 WIRE W/ PE. 60Hz
23089048	DECAL ELECT. SCHEMATIC 4 WIRE W/NEUTRAL & PE 50Hz
80443955	MANUAL PORO FIELD RETROFIT NIRVANA 7.5-15hp/5.5-18kw
KIT, HIGH DUST INLET FILTER
22898183	HOSE INLET 2" ID FLEXABLE
22927636	DECAL HIGH DUST
22932560	INSTRUCTION SHEET UNIGY PHASE 11 HIGH DUST
22978852	ASSEMBLY FILTER HIGH DUST
95235156	CLAMP HOSE WORM DRIVE STAINLESS STEEL
96737564	NUT HEX FLANGE LOCK SERRATED M6 - 1.00
96742689	BOLT HEX FLANGE M6 - 1.00 X 16.0 LONG

IRN 7.5–15 HP — Recommended Parts

CCN	Description
Start Up Kit
23352131	Kit − Start up
Maintenance Kits
23352198	Kit − 2000 Hour (Without air treatment system)
23352206	Kit − 2000 Hour w/ High dust filter (Without air treatment system)
23352214	Kit − 2000 Hour (TAS)
23352222	Kit − 2000 Hour w/ High dust filter (TAS)
23352230	Kit − 8000 Hour (Without air treatment system)
23352248	Kit − 8000 Hour w/ High dust filter (Without air treatment system)
23352255	Kit − 8000 Hour (TAS)
23352263	Kit − 8000 Hour w/ High dust filter (TAS)
Repair Kits
22596548	Kit − Thermal valve rebuild
42595710	Kit − Shaft seal repair
Option Kits
22555122	Kit − Remote fault indicator
22452619	Filter − EMC (low voltage)
22489603	Kit − Line conditioning (high voltage)
22608491	Kit, sequencing
Coolant
92692284	UltraPlus coolant 5 L
38459582	UltraPlus coolant 20 L
92837095	UltraPlus coolant 1 L
Coolant Check
88176367	KIT − ULTRAPLUSCHECK 1 x SAMPLE
Spare Parts
88171913	Element, air filter
39329602	Filter, coolant
22388045	Cartridge, separator
22363725	Pre filter
22546725	Switch, on / off
22358154	Button, emergency stop
22358501	Indicator (Green)
22401590	Valve, safety (PED)
22378665	Valve, safety (ASME)
88342993	Element, filter IRGP64
88343025	Element, filter IRHE64
